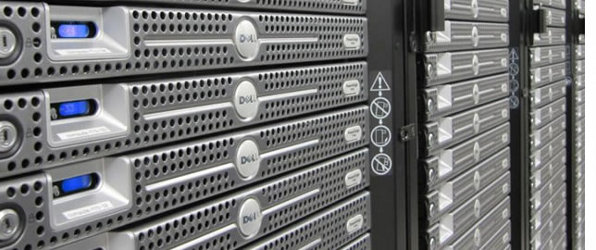

Closeup of some Dell PowerEdge 1950s in the original Deepthought cluster

The Deepthought HPC cluster

The Deepthought High-Performance Computing (HPC) cluster is the first of the HPC clusters maintained by the Division of Information Technology as a general campus resource. Over its 10 years of existence, it has been continually grown and refreshed, so while it is not as powerful as its larger sibling, it is still quite useful for smaller jobs and more High-Throughput Computing tasks.

Hardware

The following table lists the variety of hardware on the Deepthought cluster, more or less from older to newer.

Description Processor Number
of nodes
Cores/node Memory/node
GB
Memory/core
GB
Scratch space
per node, GB
Interconnect
PowerEdge 1950 Woodcrest, 2.0 GHz 39 4 4 1 35 Gigabit Ethernet
PowerEdge 1950 2.7 GHz 88 4 8 2 35 Gigabit Ethernet
PowerEdge 1950 Clovertown/Harpertown 2.3 GHz 56 8 8 1 35-100 Gigabit Ethernet
PowerEdge 1950 Clovertown 2.3 GHz 6 8 32 4 190 Gigabit Ethernet
M610 Gainestown, 2.3 GHz 16 8 24 3 100 Gigabit Ethernet
M610 Westmere, 2.9 GHz 6 12 24 2 100 Gigabit Ethernet
M610 Westmere, 2.9 GHz 24 12 48 4 100 Gigabit Ethernet
M610 SandyBridge, 2.2 GHz 18 16 64 4 190 Gigabit Ethernet
PowerEdge 1950 Clovertown 2.3 GHz 51 8 8 1 35 DDR infiniband
M610 Westmere, 2.9 GHz 56 12 24 2 100 QDR Infiniband
M610 Westmere, 2.9 GHz 4 12 48 4 190 QDR Infiniband
M610 SandyBridge, 2.2 GHz 4 16 64 4 190 QDR Infiniband
C8220 SandyBridge, 2.2 GHz 8 16 64 4 400 FDR Infiniband
